Clathrin heavy chain抗体 [X22]

ICC/IF analysis of NCI-H460 Cells using GTX22731 Clathrin heavy chain antibody [X22]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:200 overnight at 4ºC

ICC/IF analysis of U251 cells using GTX22731 Clathrin heavy chain antibody [X22]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:200 overnight at 4ºC

WB analysis of 25 ug of human brain lysates using GTX22731 Clathrin heavy chain antibody [X22].
Dilution : 1:300

ICC/IF analysis of HeLa cells using GTX22731 Clathrin heavy chain antibody [X22]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:200 overnight at 4ºC

IHC-P analysis of human colon tissue using GTX22731 Clathrin heavy chain antibody [X22].
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:100

IHC-P analysis of human breast carcinoma tissue using GTX22731 Clathrin heavy chain antibody [X22].
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:100

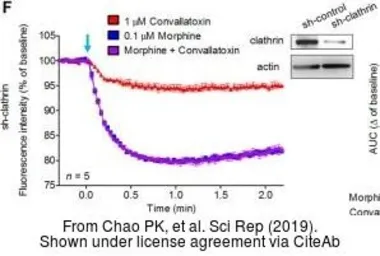

The data was published in the journal Sci Rep in 2019.PMID: 30787373
