IL1 beta抗体

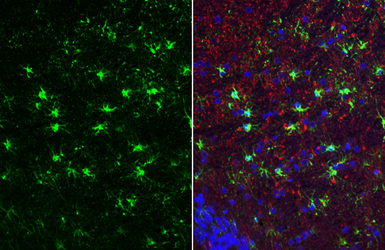

IL1 beta antibody detects IL1 beta protein at microglia by immunohistochemical analysis.
Sample: Paraffin-embedded rat cerebellum.
Green: IL1 beta stained by IL1 beta antibody (GTX74034) diluted at 1:250.
Red: NF-H, a neuron marker, stained by NF-H antibody [GT114] (GTX634289) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

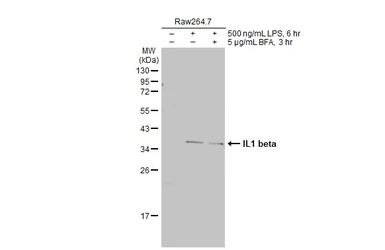

Untreated (–) and treated (+) Raw264.7 whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with IL1 beta antibody (GTX74034) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

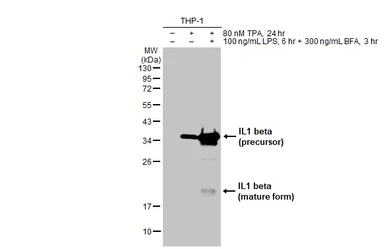

Untreated (–) and treated (+) THP-1 whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with IL1 beta antibody (GTX74034) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

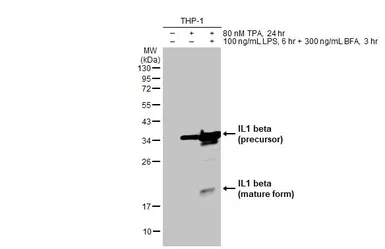

Untreated (–) and treated (+) THP-1 whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with IL1 beta antibody (GTX74034) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

An ELISA plate is coated with 50 μL of IL1 beta recombinant protein at concentration of 5 μg/mL. The coated protein is detected with anti-IL1 beta antibody (GTX74034) at concentration ranged from 0.01 to 0.15 μg/mL.

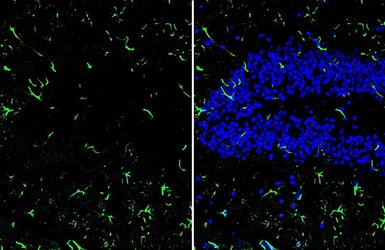

IL1 beta antibody detects IL1 beta protein at microglia by immunohistochemical analysis.
Sample: Frozen-sectioned mouse hippocampus.
Green: IL1 beta stained by IL1 beta antibody (GTX74034) diluted at 1:250.
Blue: Fluoroshield with DAPI (GTX30920).

IL1 beta antibody detects IL1 beta protein by immunofluorescent analysis.
Sample: DIV9 rat E18 primary cortical neuron and glia cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: IL1 beta stained by IL1 beta antibody (GTX74034) diluted at 1:500.
Red: beta Tubulin 3/ Tuj1, stained by beta Tubulin 3/ Tuj1 antibody [GT11710] (GTX631836) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).

The data was published in the journal Nat Commun in 2015.PMID: 26104484

The data was published in the 2019 in Commun Biol. PMID: 31602405

The data was published in the 2022 in Sci Rep. PMID: 35256715

The data was published in the 2022 in Sci Rep. PMID: 35256715

The data was published in the 2022 in Sci Rep. PMID: 35256715
