ILK抗体 [N1C1]

Wild-type (WT) and ILK knockout (KO) HeLa cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with ILK antibody [N1C1] (GTX101691) diluted at 1:500. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Various whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with ILK antibody [N1C1] (GTX101691) diluted at 1:500.

ILK antibody [N1C1] immunoprecipitates ILK protein in IP experiments.
IP samples: HeLa whole cell extract
A. 30 μg HeLa whole cell extract
B. Control with 4 μg of preimmune Rabbit IgG
C. Immunoprecipitation of ILK protein by 4 μg ILK antibody [N1C1] (GTX101691)
10 % SDS-PAGE
The immunoprecipitated ILK protein was detected by ILK antibody [N1C1] (GTX101691) diluted at 1:500.
[EasyBlot anti-rabbit IgG (GTX221666-01) was used as a secondary reagent]

Sample(30 μg of whole cell lysate)
A:A431(GTX27909)
7.5% SDS PAGE
GTX101691 diluted at 1:500

ILK antibody [N1C1] detects ILK protein by western blot analysis.
A. 30 μg Neuro2A whole cell extract
B. 30 μg C8D30 whole cell extract
C. 30 μg NIH-3T3 whole cell extract
D. 30 μg Raw 264.7 whole cell extract
E. 30 μg C2Cl2 whole cell extract
10 % SDS-PAGE
ILK antibody [N1C1] (GTX101691) dilution: 1:1000

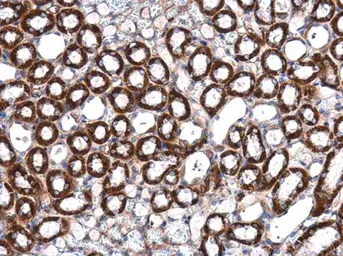

ILK antibody [N1C1] detects ILK protein at cytoplasm in mouse kidney by immunohistochemical analysis.
Sample: Paraffin-embedded mouse kidney.
ILK antibody [N1C1] (GTX101691) diluted at 1:500.

Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

Whole cell extract (30 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with ILK antibody [N1C1] (GTX101691) diluted at 1:500.

Immunohistochemical analysis of agarose-embedded zebrafish embryo, using ILK antibody [N1C1] (GTX101691) at 1:100 dilution. (This image was provided courtesy of the Schilling Lab at UC, Irvine.)

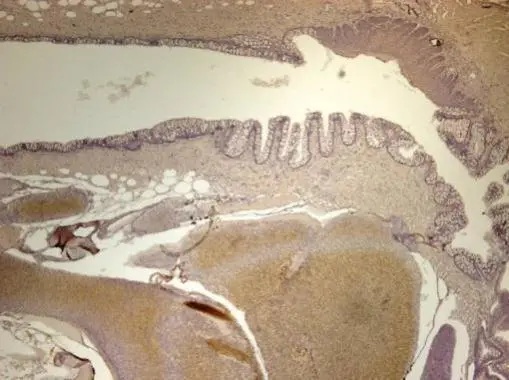

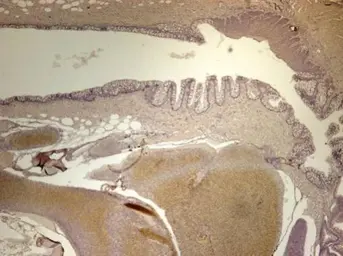

Immunohistochemical analysis of paraffin-embedded zebrafish tissue, using ILK antibody [N1C1] (GTX101691) at 1:300 dilution.

Sample (30 μg of whole cell lysate)
A: zebrafish muscle
10% SDS PAGE
GTX101691 diluted at 1:1000

Immunofluorescent image of a pharyngeal cartilage section of a zebrafish embryo using ILK antibody [N1C1] (GTX101691) at a 1:200 dilution. ILK (Green)(This image was provided courtesy of the Schilling Lab at UC, Irvine.)
