Kv11.1抗体

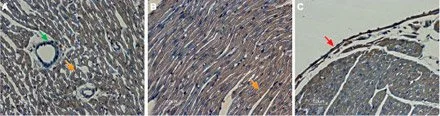

IHC-P analysis of rat heart tissue using GTX54789 Kv11.1 antibody. DAB product is brown and the counterstain is cresyl violet.
Panel A : Transversal section of the atrium wall; note that arterial smooth muscle fibers were not stained (green arrow).
Panel B : Longitudinal section  of the myocardium.
Panel C : Section showing myocardium and endocardium (red arrow).

Live cell imaging analysis of live intact HEK-293 transfected cells using GTX54789 Kv11.1 antibody.
Left panel : Primary antibody
Right panel : Primary antibody preincubated with the negative control antigen
Dilution : 1:25

WB analysis of Kv11.1 transfected HEK-293 cell lysates using GTX54789 Kv11.1 antibody preincubated with or without immunogen peptide.
Dilution : 1:200

IP analysis of HEK-293 cell lysate using GTX54789 Kv11.1 antibody. Red arrow indicates Kv11.1 while the black arrow shows the IgG heavy chain. WB was performed with the GTX54789 antibody.
Lane 1 : Cell lysate
Lane 2 : Lysate + protein A beads + Anti- Kv11.1  Antibody  (GTX54785)
Lane 3 : Cell lysate + protein A beads + Anti-Kv11.1 Antibody (GTX54776)
Lane 4 : Cell lysate + protein A beads + Anti-Kv11.1 Antibody (GTX54789)
Lane 5 : Cell lysate + protein A beads + pre-immune rabbit serum

FACS analysis of K562 cells using GTX54789 Kv11.1 antibody.
Green : Unstained cell
Black : Cell staining with primary antibody
