SQSTM1 antibody detects SQSTM1 protein by western blot analysis. Un-treated (-) and treated (+, Thapsigargin treatment for 12 hr and 24hr) Huh-7 whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with SQSTM1 antibody (GTX629890) diluted by 1:1000.
The ACTB was used as internal control (GTX110564, 1:50000) shown at the bottom panel.
The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

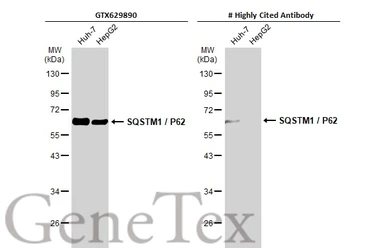

Various whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with SQSTM1 / P62 antibody [GT1478] (GTX629890) diluted at 1:500. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

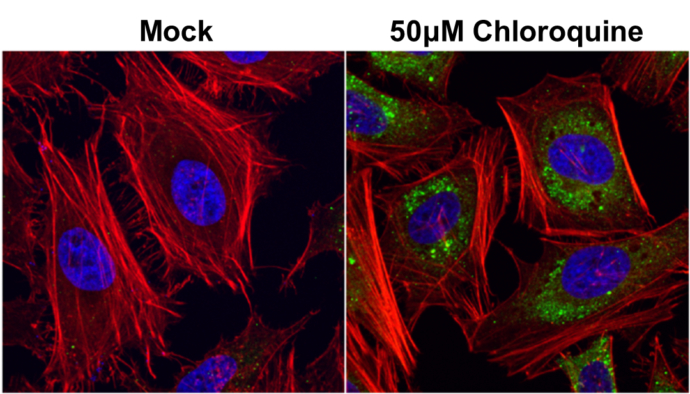

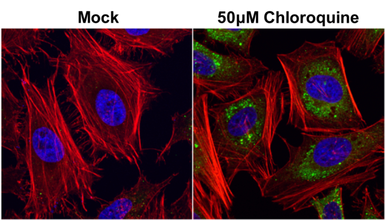

SQSTM1 antibody [GT1478] detects SQSTM1 protein at autophagosome by immunofluorescent analysis.
Samples: HeLa cells mock (left) and treated with 50μM Chloroquine for 24 hr (right) were fixed in 4% paraformaldehyde at RT for 15 min.
Green: SQSTM1 protein stained by SQSTM1 antibody [GT1478] (GTX629890) diluted at 1:1000.
Red: phalloidin, a cytoskeleton marker, stained by phalloidin (invitrogen, A12380) diluted at 1:200.
Blue: Hoechst 33342 staining.

SQSTM1 antibody detects SQSTM1 protein by western blot analysis. Un-treated (-) and treated (+, Thapsigargin treatment for 12 hr and 24hr) HepG2 whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with SQSTM1 antibody (GTX629890) diluted by 1:1000.
The ACTB was used as internal control (GTX110564, 1:50000) shown at the bottom panel.
The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

Non-transfected (–) and transfected (+) HepG2 whole cell extracts (50 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with SQSTM1 antibody [GT1478] (GTX629890) diluted at 1:500. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

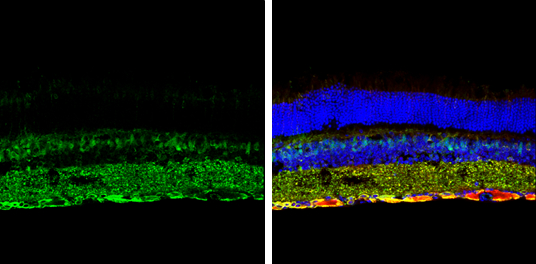

SQSTM1 antibody [GT1478] detects SQSTM1 protein expression by immunohistochemical analysis.
Sample: Frozen sectioned adult mouse retina.
Green: SQSTM1 protein stained by SQSTM1 antibody [GT1478] (GTX629890) diluted at 1:250.
Red: beta Tubulin 3/ TUJ1, stained by beta Tubulin 3/ TUJ1 antibody [GT11710] (GTX631836) diluted at 1:250.
Blue: Fluoroshield with DAPI (GTX30920).

SQSTM1 antibody [GT1478] (GTX629890) detects SQSTM1 protein by flow cytometry analysis.
Sample: HeLa cell fixed in 4% paraformaldehyde at 4oC for 5 min.
Brown: Unlabelled sample was also used as a control.
Blue: SQSTM1 antibody [GT1478] (GTX629890) dilution: 1:100.
Acquisition of >20,000 events were collected using Argon ion laser (488nm) and 525/30 bandpass filter.

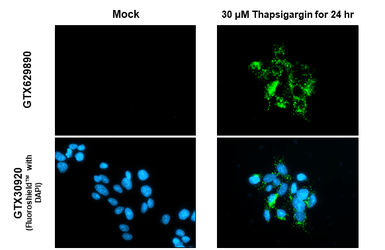

SQSTM1 / P62 antibody [GT1478] detects SQSTM1 / P62 protein at cytoplasm by immunofluorescent analysis.
Sample: Mock and treated HepG2 cells were fixed in ice-cold MeOH for 5 min.
Green: SQSTM1 / P62 stained by SQSTM1 / P62 antibody [GT1478] (GTX629890) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).
Scale bar= 10μm.
