TOMM20抗体 [GT1136]

Various whole cell extracts (30 μg) were separated by 15% SDS-PAGE, and the membrane was blotted with TOMM20 antibody [GT1136] (GTX00773) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

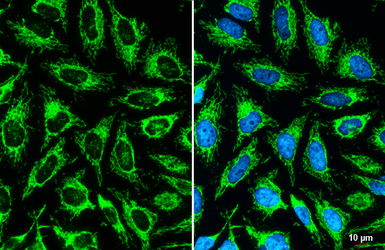

TOMM20 antibody [GT1136] detects TOMM20 protein at mitochondria by immunofluorescent analysis.
Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: TOMM20 stained by TOMM20 antibody [GT1136] (GTX00773) diluted at 1:1000.
Blue: Fluoroshield with DAPI (GTX30920).
Scale bar= 10 μm.

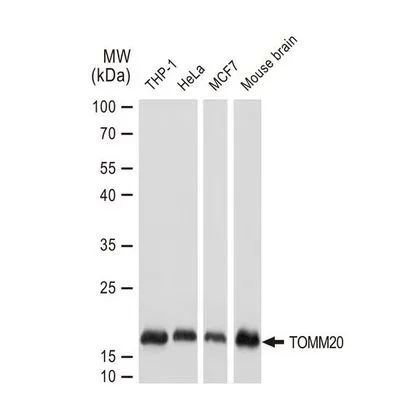

WB analysis of various samples using GTX00773 TOMM20 antibody [GT1136].
Dilution : 1:1000
Loading : 25μg

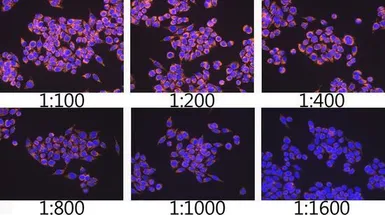

ICC/IF analysis of HeLa cells using GTX00773 TOMM20 antibody [GT1136].
Orange: Primary antibody
Blue: DAPI
Dlution : 1:100-1:1600

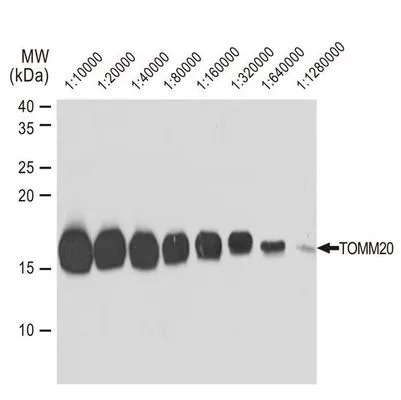

WB analysis of THP-1 whole cell lysate using GTX00773 TOMM20 antibody [GT1136].
Dilution : 1:10000-1:1280000
Loading : 25μg

IHC-P analysis of mouse heart tissue section using GTX00773 TOMM20 antibody [GT1136].
Dlution : 1:200

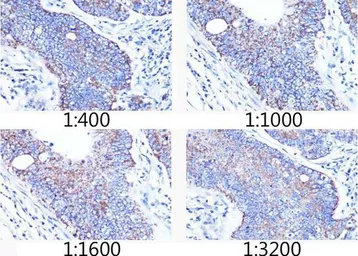

IHC-P analysis of hmuan colon carcinoma tissue section using GTX00773 TOMM20 antibody [GT1136].
Dlution : 1:400-1:3200

IP analysis of HeLa whole cell lysate (200μg) using GTX00773 TOMM20 antibody [GT1136].
IP antibody: 3μg
IB dilution : 1:1000

IHC-P analysis of hmuan colon carcinoma tissue section using GTX00773 TOMM20 antibody [GT1136].
Dlution : 1:200

IHC-P analysis of rat kidney tissue section using GTX00773 TOMM20 antibody [GT1136].
Dlution : 1:200
