iNOS抗体

ICC/IF analysis of A549 cells using GTX17504 iNOS antibody. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:20 overnight at 4ºC

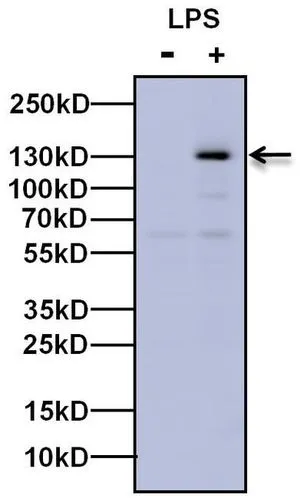

WB analysis of 20 ug of RAW264 whole cell lysate untreated (left lane) or stimulated with LPS at 1 μg/mL for 16 hours (right lane) using GTX17504 iNOS antibody.
Dilution : 1:1000

ICC/IF analysis of NIH-3T3 cells using GTX17504 iNOS antibody. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:20 overnight at 4ºC

IHC-P analysis of human lung tissue using GTX17504 iNOS antibody.
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:200

IHC-P analysis of human heart tissue using GTX17504 iNOS antibody.
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:200
