pan NOS抗体 [NOS-3F7-B11 B5]

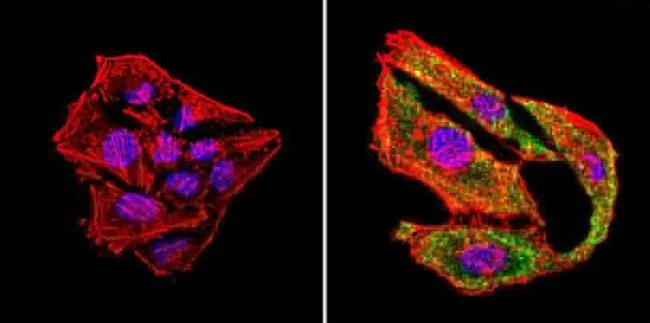

ICC/IF analysis of HeLa cells using GTX22801 pan NOS antibody [NOS-3F7-B11 B5]. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:20 overnight at 4ºC

ICC/IF analysis of SK-N-MC Cells using GTX22801 pan NOS antibody [NOS-3F7-B11 B5]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:20 overnight at 4ºC

WB analysis of 25 ug of mouse brain (lane 1) and C2C12 (lane 2) lysates using GTX22801 pan NOS antibody [NOS-3F7-B11 B5].
Dilution : 1:100

ICC/IF analysis of C2C12 cells using GTX22801 pan NOS antibody [NOS-3F7-B11 B5]. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:20 overnight at 4ºC

ICC/IF analysis of SK-N-MC cells using GTX22801 pan NOS antibody [NOS-3F7-B11 B5]. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:20 overnight at 4ºC
